DD-X DDU
Tax excluded. Shipping calculated at checkout
Why Purchase With Us?Precision Sim Engineering DDU Purchases Include a Lifetime SimHub Membership.

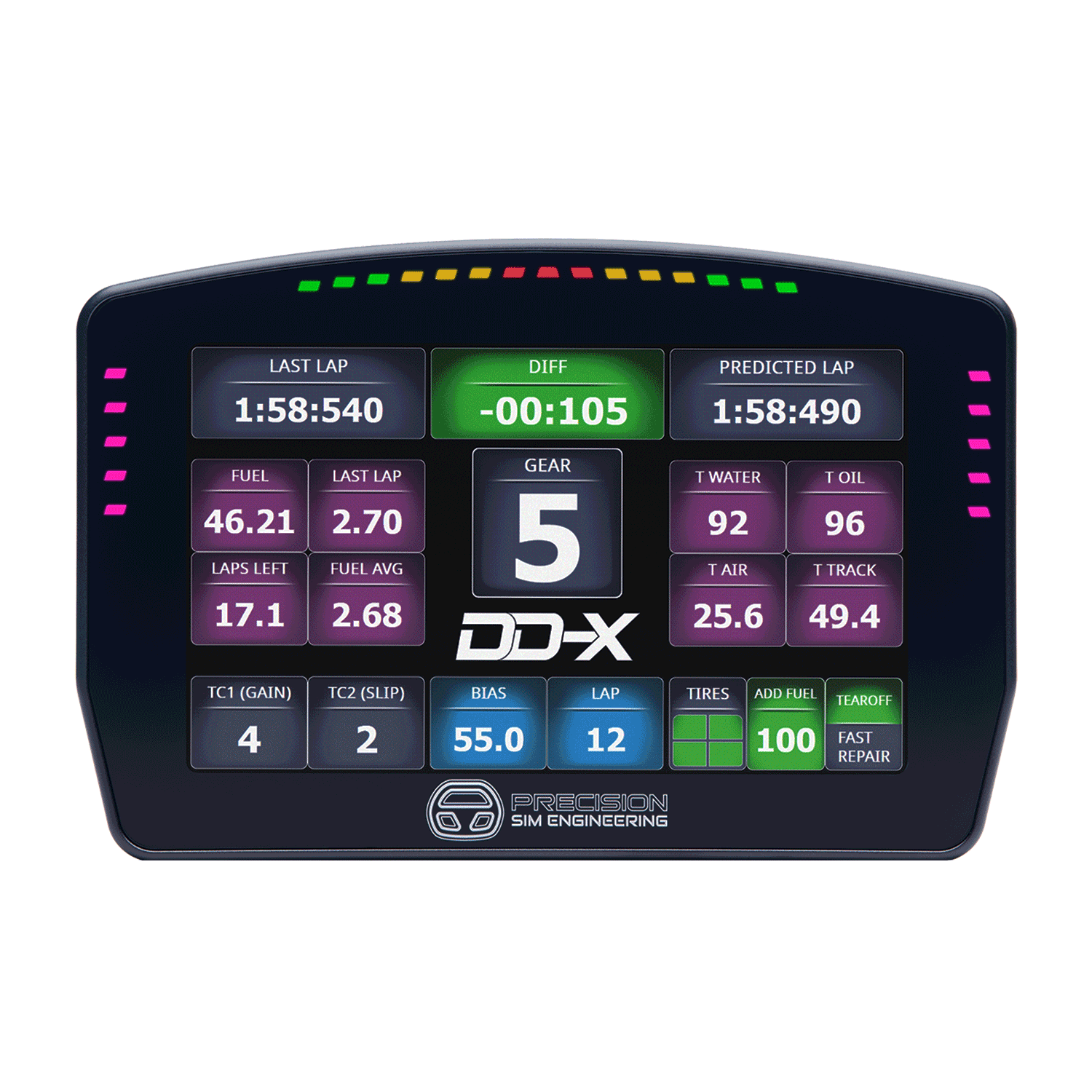

The DD-X is built for serious sim racers who demand performance, precision, and style. With a massive 6.8-inch, 840 by 480 pixel display running at up to 60 frames per second, you’ll get real-time data exactly when you need it—no matter how intense the race gets.
Equipped with 25 fully customizable RGB LEDs, the DD-X lets you dial in perfect shift points for any virtual car. Its smart 5-15-5 LED layout makes it easy to set up spotter lights, marshal flags, low fuel alerts, and traction control or ABS indicators. Thanks to full SimHub integration, you can control everything—dash display and LEDs—from one place, so you can stay locked in on your racing line.
Crafted from aerospace grade 6061 T6 aluminum, the DD-X features a precision machined enclosure with a sleek satin black anodized finish. The anti-glare Gorilla Glass screen cover reduces reflections and keeps your vibrant LCD display crisp and clear in any lighting.
Installation is simple with our innovative notched mounting bracket, allowing for quick height adjustments while keeping everything aligned with your rig. No tools needed—just fast, frustration free tweaks. We’ve also included high retention USB cables that can handle the demands of full motion simulator setups, while shielding against EMI from force feedback motors.
The DD-X is fully compatible with all major force feedback systems, including Simucube, Fanatec, SimSteering, VRS, and Asetek. It ships with all the necessary mounting hardware, making it easy to switch between bases. Prefer a different setup? The DD-X also supports off-motor mounting using RAM mounts and SmallRig magic arms with a standard 1/4 inch thread.
Features
Vibrant 6.8in LCD display, 840 x 480 pixels, 16bit color, 350 lumen
25 ultra bright RGB LEDs in a 5-15-5 formation, 16 million colors per LED
Precision-machined 6061-T6 Aluminium enclosure with satin-black coating
Gorilla Glass screen cover with Anti-glare finish
Rigid Aluminium mounting bracket with notched adjustment points, fit all major FFB bases, RAM mounts and 1/4in threaded magic arms
2 x high retention force USB cables with angled connectors
EVA Foam presentation box with all required hardware included
Full integration with SimHub software, enabling easy setup of LED controls and dashboards.
2-year warranty as standard
Check your setup

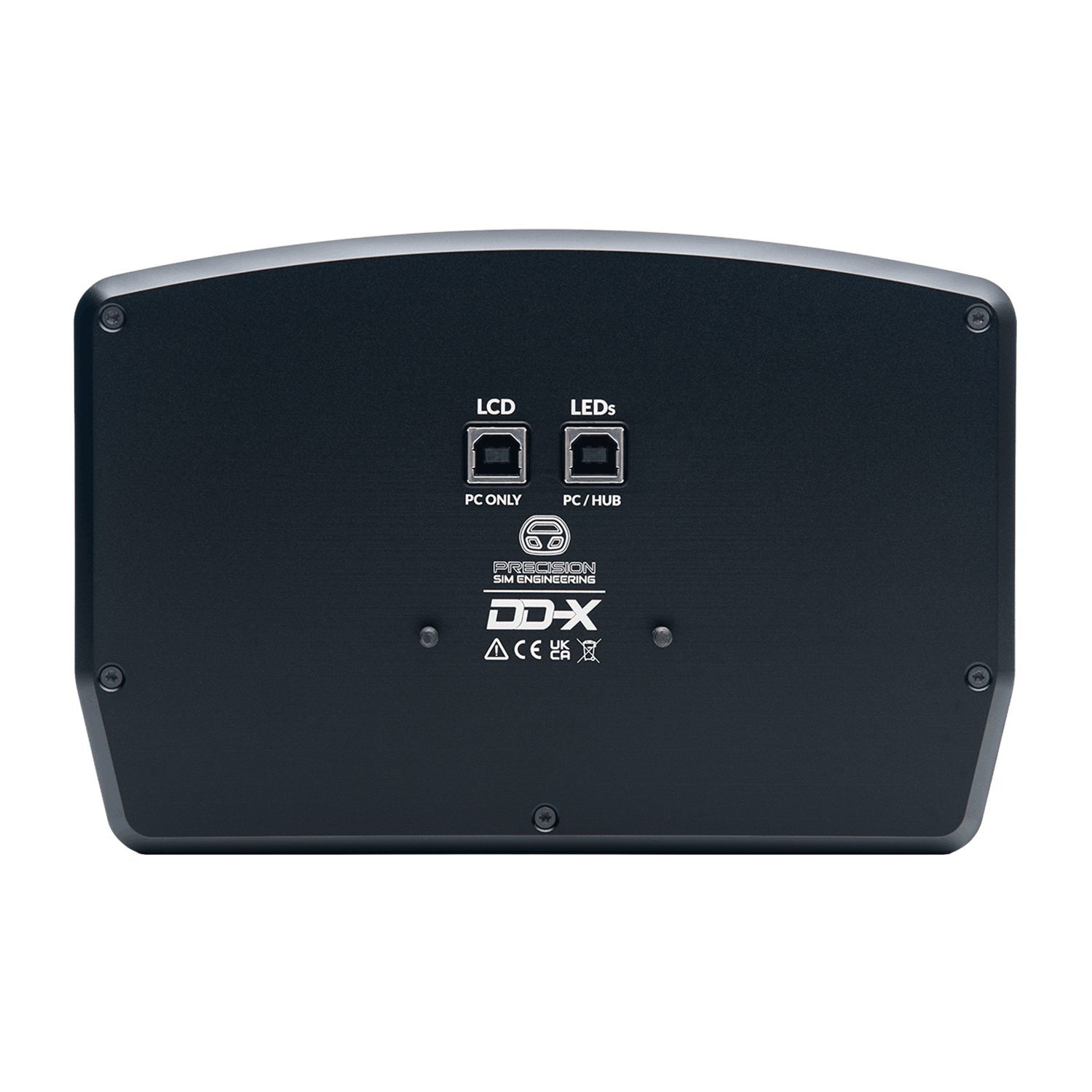

For PC use only. Requires 2 USB connections. One must be plugged into the motherboard.
Please study the DD-X Data Pack before ordering to ensure that the DDU mounting system is compatible with your unique simulator setup.
